6×DVB-S2 to 4×QAM Trans modulator Scrambler(6RF+ASI IN,QAM RF out)

Name: 6DVBS2 to 4QAM Trans modulator Scrambler6RFASI INQAM RF out
Brand: Fiber Linker
Price: 1 USD

China 6×DVB-S2 to 4×QAM Trans modulator Scrambler(6RF+ASI IN,QAM RF out) wholesale

Place of Origin : China

Brand Name : Fiber Linker

Model Number : FL-4115

MOQ : 1PCS

Packaging Details : Carton

Delivery Time : 5day

Payment Terms : TT, Westen Union, Paypal, MoneyGram

Supply Ability : 100pcs

Certification : CE FCC

Contact Now

Overview

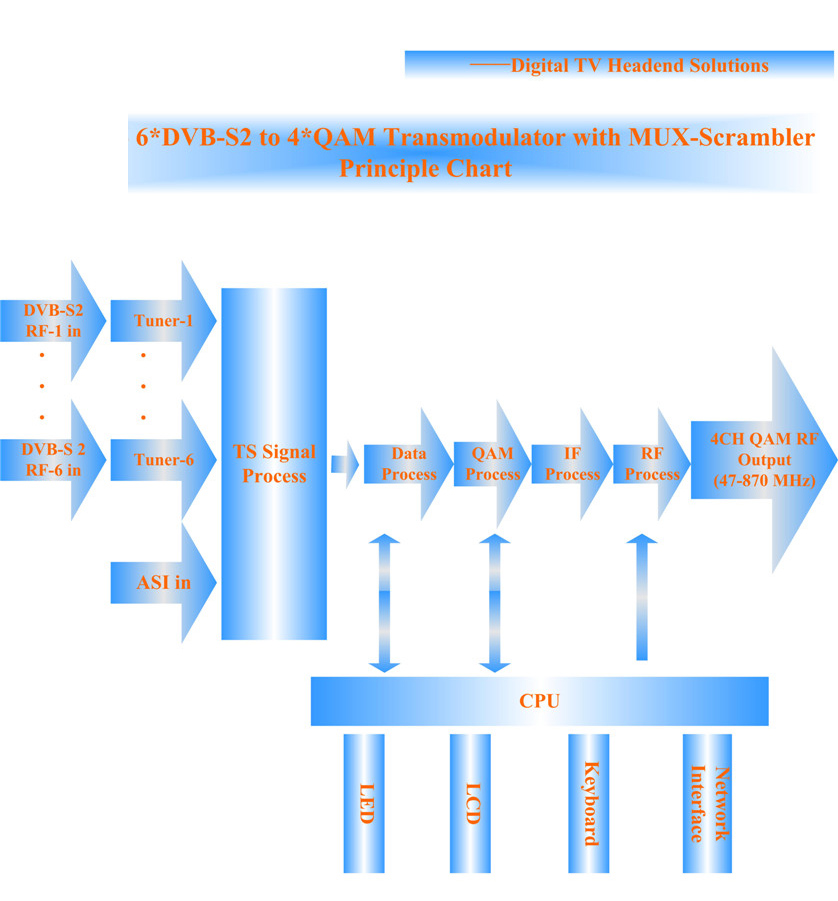

FL-4115 6×DVB-S2 to 4×QAM Trans-modulator support 6×DVB-S/S2 (QPSK/8PSK) transponders and 1xASI input, then multiplex and scramble the input signal to output selected programs through 4×QAM RF channels. It provides a cost-effective and stable solution for TV operators to re-distribute programs via HFC network. It suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.

Features

6×DVB-S/S2 RF and ASI input

Input frequency: 950~2150 MHz

Input symbol rate: 1~45 Msps

4×QAM RF output

Output frequency: 47~870 MHz

Output symbol rate: 5~9 Msps

Support 4×CAS/SMS

LCD/Keyboard control by front panel and network management by Ethernet

Technical Specification

Input	RF	6×tuner (DVB-S/S2)
	ASI	1×ASI (BNC)
	Frequency Range	950~2150 MHz
	Symbol Rate	1~45 Msps
Output	Interface	F-head
	Impedance	75Ω
	Frequency Range	47~870Mhz, 1Khz step
	Constellation	16, 32, 64, 128, 256 QAM
	Standard	EN300429/ITU-T J.83A
	Symbol Rate	5.0~9.0Msps, 1ksps step
	Error-Correcting Codes	RS code188/204
	MER	≥40dB
	BER	0
	Output Level	85~105dBV
	Level Attenuation Range	-20dBm~0dBm (per carrier), 0.5dB step
	Scrambler	support 4×CAS/SMS; head-end implementation of DVB simulcrypt (ETSI TS 103 197 V1.4.1)
Control		LCD/Keyboard, network management
Control		Ethernet software upgrade
General Features	Size	482mm×410mm×44mm
	Temperature Range	0~45°C (Operation); -20~80°C (Storage)
	Power	100-240VAC, 50Hz, 25W

Application

6×DVB-S2 to 4×QAM Trans modulator Scrambler(6RF+ASI IN,QAM RF out)

Contact Info

Email: alston@fiberlinker.com Skype: alston224

Keywords: DVB-S2 QAM modulator, DVB-S QAM modulator,
